Introduction

Tooth coloured restorations have been widely used in dentistry due to increased aesthetic demands. It is important that the restorative material within the patient's oral cavity should be having sufficient physical and mechanical property. Different types of tooth coloured restorative materials with varying physical and mechanical properties are available. Among the composite materials have been primarily used for anterior and posterior restorations.

The composition of composites has evolved significantly since its introduction more than 50 years ago. The most important changes have been in the size and amount of filler particles, which have dramatically affected the physical and aesthetic properties of the composites.¹

Composite restorations once placed in patients mouth are subjected to various oral environmental challenges such as masticatory forces, saliva, varying pH conditions due to the consumption of drinks, mouthwashes containing different chemicals, beverages and foods that are likely to stain the composite, thermal changes, and stresses from parafunctional habits like bruxism. Therefore it is crucial that the composite restorations used, have to be able to withstand the complex environmental conditions within the oral cavity.

Mouthwashes have been widely used for the purpose of preventing caries and periodontal diseases and are considered as a valuable adjunct to mechanical methods for controlling plaque and gingivitis.² Commercially available mouth rinses consist of water, antimicrobial agents, salts, preservatives and, in some cases, alcohol. Alcohol in mouth rinses is used primarily as a solvent, taste enhancer, and antiseptic agent. The variation in the concentration of these constituents will affect the pH of the mouth rinse.³

Chlorhexidine mouthrinses are considered the gold standard among mouthwashes and possess broad antimicrobial action because of its dicationic nature and its substantivity. It has been reported that mouthrinses can affect the physical and mechanical properties of the composite, especially because of its pH and alcohol content. Surface hardness is the resistance of the composite material to indentation or penetration, and this property is significantly affected by alcoholic mouth rinses. The hardness of material contributes to its wear resistance and its ability to abrade or be abraded by dental structures and other materials.⁴

It has been revealed that alcohol is a good dimethacrylate solvent. Alcohol can soften the matrix of composites by increasing the number of unreacted monomers and oligomers that diffuse out of the material.^5,6

The most popular composite material currently used by dental practitioners are micro hybrid and nanohybrid composites. With the introduction of the concept of nanotechnology in dentistry, termed nanodentistry in 2000 by R.A. Freitas Jr. there has been a surge in research for exploring the potential of different nanomaterials for dental uses.⁷ With this concept in mind, nanocomposites with nanosized filler particles have been developed. These nanocomposites have higher filler content which results in many advantages such as reduced polymerization shrinkage, improved physical properties, and higher polishability.⁸

Thus there has been a remarkable improvement in the mechanical, physical and aesthetic properties of composites used nowadays. The effect of different types of commercial alcoholic mouthwashes on its mechanical and esthetic properties have been studied showing the detrimental effect of alcohol content on the microhardness. There are a variety of non-alcoholic mouth rinses available on the market and the studies on its effect on microhardness of composite material is limited. Thus in this study, we are evaluating the effect of two commercially available non-alcoholic mouth rinses on the microhardness of composite material.

Materials and methods

40 disc-shaped composite specimens of dimension 7x2 mm thickness were prepared using a metal mould. 20 specimens made from micro hybrid (Charisma Smile, Heraeus Kulzer)and the remaining 20 specimens made from nanohybrid (Tetric N cream, Ivoclar Vivadent). A stainless steel mould was placed over a mylar strip (Samit, India), which was then positioned over a microscopic glass slide (Borosil, India). The composite material was inserted into the mould with the aid of a Teflon coated composite filling instrument (GDC, India). A mylar strip was placed over the uncured composite, followed by a glass slide on top. The pressure was applied on both sides of the disks to form a flat surface, and then light cured for 20 seconds (Bluephase N M, Ivoclar Vivadent). After curing, the composite discs were immersed in distilled water (Zydus Cadilla, India) for 24 hrs, followed by polishing using soflex discs. (3M-ESPE Dental Products, St. Paul, MN, USA)

Table 1: Composition of the materials used in the study

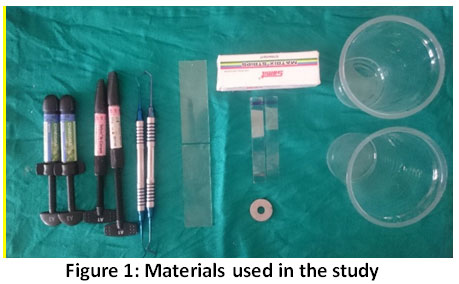

Figure 1: Materials used in the study Click here to view Figure

Figure 2: Chlorhex and Hexidine mouthwash Click here to view Figure

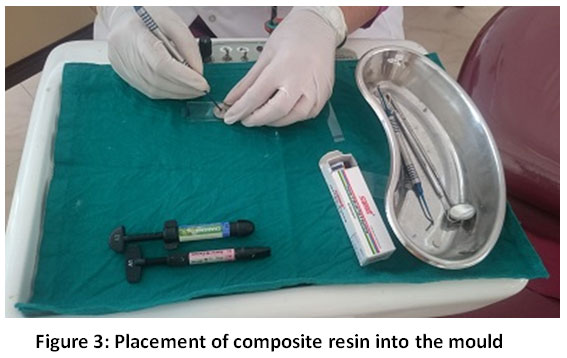

Figure 3: Placement of composite resin into the mould Click here to view Figure

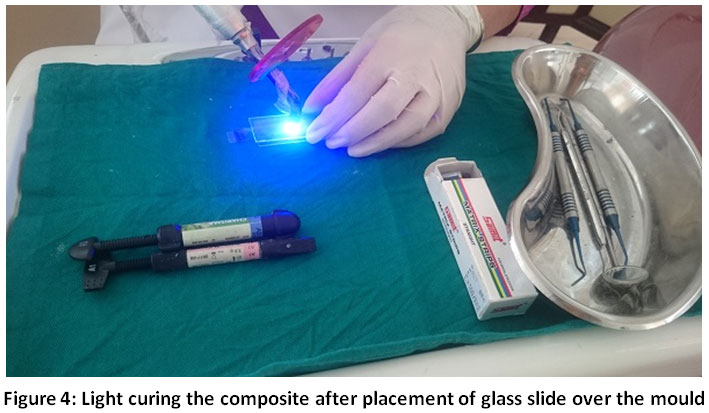

Figure 4: Light curing the composite after placement of glass slide over the mould Click here to view Figure

The samples were divided into 5 groups based on the composite material and the type of mouthrinse used for immersion.

Table 2: Study groups

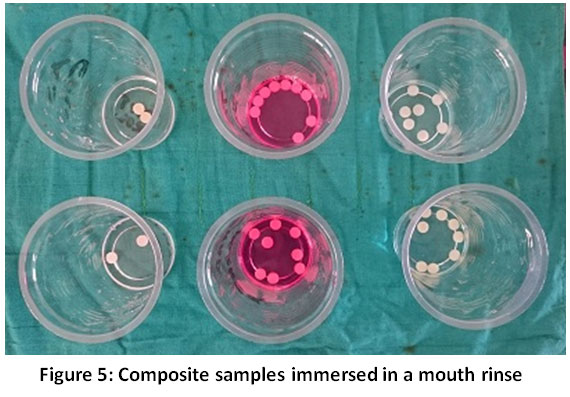

Figure 5: Composite samples immersed in a mouth rinse Click here to view Figure

These specimens were immersed into 20 ml of non-alcoholic mouth rinses for 24 hrs. Microhardness of the specimens were measured using Vickers microhardness tester(Shimadzu HMV-2TAW). An average of 5 areas was indented per sample with a test load of 50 g force for 14secs and the mean values were obtained. The average microhardness values per group were expressed as mean ± standard deviation as shown in Table 3.Inter group comparison done with Kruskal–Wallis test followed by Mann–Whitney U test used with SPSS version 19.p<0.05 were considered to be significant.

Results

Table 3: Mean and standard deviation values

Statistical analysis of the data demonstrated no significant difference in microhardness values between the micro hybrid composite immersed in chlorhex (p=0.328) ( Group 1) & hexidine(p=0.461) (Group 2) in comparison to the control group. There was no significant difference between the nanohybrid composite immersed in chlorhex(p=0.57) (Group 3) & hexidine(p=0.99)(Group 4) relative to the control group. Interestingly, no significant difference was observed in microhardness between nanohybrid and micro hybrid composites immersed in hexidine. (p=0.328)(Group 2 & 4). Data showed no significant difference comparing nanohybrid and micro hybrid composite immersed in chlorhexidine. (p=0.721) (Group 1 & 3). Fig 6 illustrating the comparison of the microhardness values of the six groups.

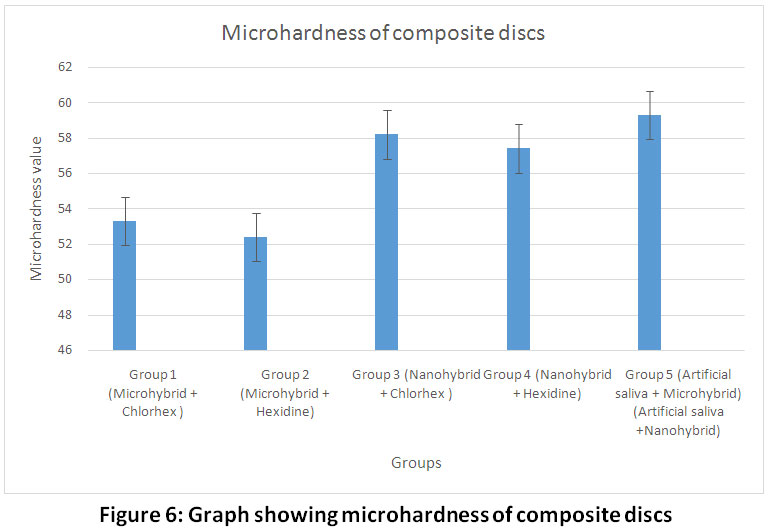

Figure 6: Graph showing microhardness of composite discs Click here to view Figure

Discussion

Superior aesthetics and excellent clinical durability for the tooth coloured restorations are the prime reasons driving the current global demand for esthetic restorative materials. Several micro hybrid and nanohybrid composites have been introduced which has reported efficacy sufficient to be used in the oral cavity. Within the oral cavity, these restorative materials are subjected to various challenges every day as a result of masticatory forces, such as a change in pH due to the consumption of different beverages, frequent use of commercial mouthwashes, temperature changes, and actions of cariogenic bacteria.

Therefore apart from in vitro studies focussing on mechanical and aesthetic properties alone, the effect of these challenges on composite materials needs to be studied and various studies have been reported. Among them, the action of mouthrinses on composites have been examined, with more focus given on alcohol containing mouth rinses. There are studies showing the effect of different commercial mouth rinses on the microhardness, surface roughness, sorption, colour stability of different composite materials. It has been shown that alcohol can reduce the surface hardness of composites.^2,9,10 Hardness is defined as a material’s resistance to indentation or penetration. The hardness of a material can affect the clinical durability of a restoration.¹¹ Therefore, a decrease in the hardness of a material can result in premature failure of a restoration which will lead to the further replacement of restoration. Researches on the effect of non-alcoholic mouth rinses on the microhardness of composite materials are limited, which is the focus of this study.

Chlorhexidine is used in this study since it is considered as the gold standard mouthrinse against which all other mouthrinses are compared. Chlorhexidine digluconate has been found to be very effective in prevention as well as control of plaque formation and inhibiting and preventing the development of gingivitis. The binding property of the CHX molecule results in a broad bactericidal and bacteriostatic mode of action and possess high substantivity up to 12 hours within the oral cavity.¹² Clinically, the patients were advised to use chlorhexidine mouth wash one minute for two to three times per day. Therefore, in this study, the specimens were immersed in chlorhexidine and artificial saliva for 24 h, which is equivalent to a minimum of 2 years of 2 min use according to El-Badrawy et al., in 1993.¹³

In the present study, we have evaluated the efficacy of commercially available non-alcohol mouth rinses, Hexidine and Chlorhex against micro hybrid and nanohybrid composites, and found that these mouth rinses did not reduce the microhardness values of the composite resins.

This result is in agreement with the findings of Abo et al., in 2012,¹⁴ Rios et al., in 2008,¹⁵ Gurdal et al., in 2002.¹⁶ Abo et al., in 2012 evaluated the efficacy of chlorhexidine mouth rinse on the microhardness and surface roughness on nano-ionomer, nano ceramic composite and giomer and they found that exposure to chlorhexidine increased the surface roughness of the three materials more than storage in artificial saliva, and had no effect on the microhardness. Devallo et al., in 2016 evaluated the effect of non-alcoholic mouth rinses on micro hybrid composite resin and found that mouth rinses had no effect on the microhardness of composite. Rios et al.,(2008) found that there were no differences in microhardness among the restorative materials and between the saliva and the erosive challenge. Gurdal et al.,(2002) found that there was no significant adverse effect of the mouthwashes on the micro hardness of restorative resins.

Miranda et al.,(2011),² Pengugonda et al.,(1994)⁶ and Weiner et al., (1994)¹⁷ found that alcohol or hydrogen peroxide containing mouthwashes can reduce the hardness of the composite. According to Asmussen in 1984, the authors demonstrated that ethanol can soften BIS-GMA based polymers.⁵ This softening effect is proportional to the amount of alcohol present in the mouthrinses.⁶

Alcohol can penetrate into the polymer and cause the release of unreacted monomers which will result in damage to the polymer chain. The low pH of alcohol-containing mouth rinses catalyses the ester groups from dimethacrylate monomers present in the composite. This is followed by hydrolytic degradation of the composite material.¹⁶

However Gürgan, et al.,(1997)¹⁶ showed both alcohol-containing and alcohol-free mouth rinse solutions affected the properties of composite resins. In the study of Gurgan et al., (1997), following the finishing and polishing of composite material they were immersed in distilled water to complete post-irradiation polymerization. But in our study, the finishing and polishing were completed after 24 hrs storage of samples in water. According to Yap et. al., in 1998,¹⁹ because of the difference between filler and matrix hardness immediately after light curing, finishing and polishing performed immediately will lead to loss of matrix phase preferentially than filler particles. Curing reaction of the photopolymerized composite resins continue for a period of 24 hrs, thus early finishing polishing procedures can increase the susceptibility of the resins to heat, resulting in a reduction of surface hardness.

The literature is still controversial about the influence of mouthwashes on the mechanical and physical properties of composites. There are varying reports showing no adverse effect of alcohol-containing mouth rinses on the hardness of the composite material and claimed that micro hardness is material dependent rather than the rinsing solutions used.^{20, 21}

It has been found that the use of mouthrinses with high alcohol content increases the risk of oropharyngeal cancer.²² Alcohol-free mouthrinses cause less pain to patients than those containing alcohol.²³ If the percentage of alcohol in the mouth rinse is >25% it may be implicated for oral carcinoma. Alcohol-free mouthrinses have been shown to be as effective as alcohol-containing ones and more effective than placebo solutions in prevention and control of plaque and gingivits.^24,25

The limitation of this study is that the in vivo oral conditions are different from in vitro experimental conditions. Several other factors need to be taken into consideration, such as saliva which may dilute or buffer the mouth rinse, salivary pellicle that might have a protective effect, food habits, beverages, temperature changes and change in pH, oral care products, which may isolate and interfere with the physical and mechanical properties of the materials, influencing the durability of the restorative treatment. Therefore, further studies are necessary to determine the effects of mouth rinses in vivo.

Conclusion

There is no reduction in microhardness values of micro-hybrid and nanohybrid composite when immersed in non-alcoholic mouth rinses, compared to composites immersed in artificial saliva as control.

Acknowledgements

I thank Prof. Dr. Baby James, Dr. Minimol K. Johny and Prof. Dr. Jose Jacob for their guidance and support in finishing my research. There was no source of financial support.

References

1. Ferracane JL. Resin composite—state of the art. Dent Mater. 2011;27(1):29–38.
   CrossRef
2. Miranda D de A, Bertoldo CE dos S, Aguiar FHB, Lima DANL, Lovadino JR. Effects of mouthwashes on Knoop hardness and surface roughness of dental composites after different immersion times. Braz Oral Res. 2011;25(2):168–173.
   CrossRef
3. Almeida GS, Poskus LT, Guimarães JGA, Silva EM. The effect of mouth rinses on salivary sorption, solubility and surface degradation of a nano-filled and a hybrid resin composite. Oper Dent. 2010; 35(1):105–111.
   CrossRef
4. Fernandez RAA, El Araby M, Siblini M, Al-Shehri A. The effect of different types of oral mouth rinses on the hardness of Silorane-based and Nano-hybrid composites. Saudi J Oral Sci. 2014;1(2):105.
   CrossRef
5. Asmussen E. Softening of BISGMA-based polymers by ethanol and by organic acids of plaque. Eur J Oral Sci. 1984;92(3):257–261.
   CrossRef
6. Penugonda B, Settembrini L, Scherer W, Hittelman E, Strassler H. Alcohol-containing mouthwashes: effect on composite hardness. J Clin Dent. 1994;5(2):60–62.
7. Freitas Jr RA. Nanodentistry. J Am Dent Assoc. 2000;131(11):1559–1565.
   CrossRef
8. Mitra SB, Wu D, Holmes BN. An application of nanotechnology in advanced dental materials. J Am Dent Assoc. 2003;134(10):1382–1390.
   CrossRef
9. Gürgan S, Önen A, Köprülü H. In vitro effects of alcohol-containing and alcohol-free mouth rinses on microhardness of some restorative materials. J Oral Rehabil. 1997;24(3):244–246.
   CrossRef
10. Kao EC. Influence of food-simulating solvents on resin composites and glass-ionomer restorative cement. Dent Mater. 1989;5(3):201–208.
    CrossRef
11. Anusavice KJ, Shen C, Rawls HR. Phillips’ science of dental materials. Elsevier Health Sciences; 2013.
12. Van Strydonck DA, Slot DE, Van der Velden U, Van der Weijden F. Effect of a chlorhexidine mouth rinse on the plaque, gingival inflammation and staining in gingivitis patients: a systematic review. J Clin Periodontol. 2012;39(11):1042–1055.
    CrossRef
13. El-Badrawy WAG, McComb D, Wood RE. Effect of home-use fluoride gels on glass ionomer and composite restorations. Dent Mater. 1993;9(1):63–67.
    CrossRef
14. ABO ENA, Yousef M. Evaluation of Different Restorative Materials after Exposure to Chlorhexidine. J Am Sci. 2012;8(3).
15. Rios D, Honório HM, Francisconi LF, Magalhães AC, Machado MA de AM, Buzalaf MAR. In situ effect of an erosive challenge on different restorative materials and on enamel adjacent to these materials. J Dent. 2008;36(2):152–157.
    CrossRef
16. Gürdal P, Akdeniz BG, Hakan Sen B. The effects of mouth rinses on microhardness and colour stability of aesthetic restorative materials. J Oral Rehabil. 2002;29(9):895–901.
    CrossRef
17. Weiner R, Millstein P, Hoang E, Marshall D. The effect of alcoholic and nonalcoholic mouthwashes on the heat-treated composite resin. Oper Dent. 1997;22:249–253.
18. Khan AA, Siddiqui AZ, Mohsin SF, Al-Kheraif AA. Influence of mouth rinses on the surface hardness of dental resin nano-composite. Pak J Med Sci. 2015;31(6):1485.
    CrossRef
19. Yap AUJ, Lye KW, Sau CW. Surface characteristics of tooth-coloured restoratives polished utilizing different polishing systems. Oper Dent. 1997;22:260–265.
20. De Moraes RR, Marimon JLM, Jochims Schneider LF, Sinhoreti MAC, Correr-Sobrinho L, Bueno M. Effects of 6 months of ageing in the water on hardness and surface roughness of two micro hybrid dental composites. J Prosthodont. 2008;17(4):323–326.
    CrossRef
21. Festuccia MSCC, Garcia L da FR, Cruvinel DR, Pires-De-Souza F de C. Color stability, surface roughness and microhardness of composites submitted to mouth rinsing action. J Appl Oral Sci. 2012;20(2):200–205.
    CrossRef
22. Winn DM, Blot WJ, McLaughlin JK, Austin DF, Greenberg RS, Preston-Martin S, et al.,. Mouthwash use and oral conditions in the risk of oral and pharyngeal cancer. Cancer Res. 1991;51(11):3044–3047.
23. Bolanowski SJ, Gescheider GA, Sutton SVW. Relationship between oral pain and ethanol concentration in mouth rinses. J Periodontal Res. 1995;30(3):192–197.
    CrossRef
24. Borrajo JLL, Varela LG, Castro GL, Rodriguez‐Nuñez I, Figueroa MG, Torreira MG. Efficacy of Chlorhexidine Mouthrinses With and Without Alcohol: A Clinical Study. J Periodontol. 2002;73(3):317–21.
    CrossRef
25. Arweiler NB, Netuschil L, Reich E. Alcohol-free mouth rinse solutions to reduce supragingival plaque regrowth and vitality: A controlled clinical study. J Clin Periodontol. 2001;28(2):168–174.
    CrossRef
